UNS.C17410 Beryllium Copper Strips 0.2mmx200mmx1000mm For Plastic
Molds
Product Name: Beryllium copper strips
Grade: UNS.C17410
Size: 0.2mmx200mmx1000mm, Or as customers' requirement
State: 1/2 HT(TH02), HT(TH04)
Product Informance of CUBERYLLIUM® Company:
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.
These fall into two categories: alloys selected for high strength
(Alloys 172,173,170) and alloys selected for high conductivity
(Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia
Market. Also Supply Master alloy : CuBeryllium-200;
CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global
factory.
Chemical Composition of UNS.C17410 Beryllium Copper Alloy:
| Cuberyllium Brand | UNS-Number | Beryllium | Cobalt | Nickel | Cobalt
+ Nickel | +Cobalt
+ Nickel
+ Iron | Lead | Copper |
| Cuberyllium-C741 | C17410 | 0.15-0.50 | 0.35-0.60 | _ | _ | _ | _ | Balance |
Forms Available
Alloy 174 mill hardened strip is available in widths ranging from
1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.
Typical application of UNS.C17410 Beryllium Copper Strips:
Bearings
Plastic molds
Welding electrodes
Current-carrying springs
Corrosioin resistant components
Precision screw machined parts
Connectors for appliances and consumer electronics
| Related material specifications of UNS.C17410 Beryllium Copper Alloy |
| Strips | ASTM B768, B888 |
| Sheets | ASTM B768, B888 |
Typical Physical Properties of UNS.C17410 Beryllium Copper Alloy:
| Elastic Modulus | Melting Point (Solidus) | Electrical Conductivity/ Resistivity | Density | Thermal Expansion Coefficient | Thermal Conductivity (25 °C) |
| 138 GPa | 1020 °C | 2.9-3.8 μΩcm | 8.80 g/cm3 | 17.6 x 10-6 m/m °C | 230 W/ m K |
MECHANICAL PROPERTIES of UNS.C17410 Beryllium Copper Strips:
| | 0.2% Offset Yield Strength (min) | Ultimate Tensile Strength (min) | Elongation (min) | |
| Temper | Hardness |
| | ksi | MPa | ksi | MPa | % | HV |
1/2HT(TH02) | 80 - 100 | 550 - 690 | 95 - 115 | 665 - 790 | 10~20 | 180 - 230 |
| HT(TH04) | 100 - 120 | 690 - 830 | 110 - 130 | 760 - 895 | 7~17 | 210 - 278 |
Common Fabrication Processes:
- Blanking
- Drilling
- Forming and Bending
- Tapping
- Turning
Thermal Properties:
| Treatment | Minimum * | Maximum * | Time ** |
| Hot Working Temp | 1200 | 1750 | |
| Solution Treatment | | | 0 |
* Temperature is measured in Fahrenheit. ** Time is measured in minutes. |

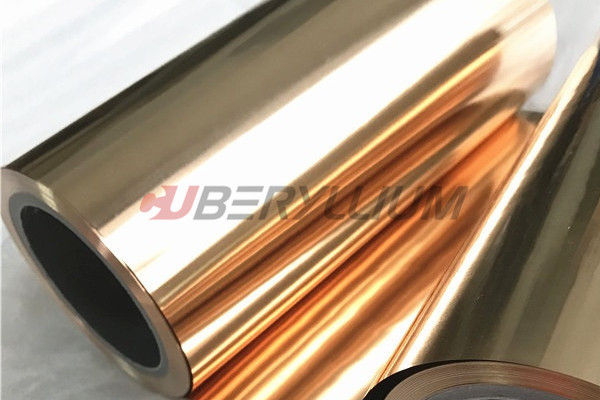

Product Photo:
Health and Safety
Processing beryllium-containing alloys poses a health risk if safe
practices are not followed. Inhalation of airborne beryllium can
cause serious lung diseases in some individuals. Occupational
safety and health regulatory agencies worldwide have set mandatory
limits on occupational respiratory exposures. Read and follow the
guidance in the Safety Data Sheet (SDS) before working with this
material.
For questions on safe practices for beryllium-containing alloys,
contact us by e mail at info@cuberyllium.com
Fabrication
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened
process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06)
XHMS(TM08).,we are the only factory could do mill harden strip in
China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous
Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the
amount is different.
