UNS.C17500 (Alloy 10) Beryllium Bronze Wires With Good Strength And
Hardness
Product Description:
Name: Beryllium bronze wires
Grade: UNS.C17500 (Alloy 10)
Specification: Thickness 0.08mm-6mm
Surface: Bright
State: A(TB00), H(TD04), AT(TF00), HT(TH04)
Features: Good strength and hardness
Application: For Springs
Introduction of UNS. C17500 Beryllium Bronze Alloy:
C17500 Beryllium Copper has an electrical conductivity from 45 -
60% as that of pure copper. Its yield strength is up to 125 ksi.
Its Tensile Strength is 135 ksi. It has a conductivity of 60% IACS.
As far as its use goes in applications that call for high
reliability relay, this is definitely one of the best alloys
available. Beryllium Copper C17500 wires can be required to meet
the specification ASTM B441.
Chemical Composition of UNS.C17500 (Alloy 10) Beryllium Bronze Alloy:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt | Fe | Si | Copper |
| Cuberyllium-C750 | C17500 | 0.40-0.70 | 2.4～2.7 | <0.1 | <0.2 | Balance |
Note: Copper plus additions equal 99.5% Min.
Typical Physical Properties of UNS.C17500 (Alloy 10) Beryllium Bronze Alloy:
| Density | 8.83 | g/cm3 |
| Density before age hardening | 8.75 | g/cm3 |
| Melting Range | 1000~1070 | ℃ |
| Elastic Modulus | 14.1 | (kg/mm2 (103) |
| Thermal Expansion Coefficient | 18 x 10 -6 | 20 °C to 200 °C m/m/°C |
| Thermal Conductivity | 0.48 | cal/(cm-s-°C) |
Mechanical and Electrical Properties of UNS.C17500 (Alloy 10) Beryllium Bronze Wires:
| Temper(*) | Heat Treatment | Tensile Strength Mpa | Elongation Percent (Min) | Electrical Conductivity Percent IACS |
|---|
| A(TB00) | / | 240~380 | 20~60 | 20~30 |
| H(TD04) | / | 440~550 | 2~20 | 20~30 |
| AT(TF00) | 3 hr 490℃ | 690~900 | ＞10 | 45~60 |
| HT(TH04 | 2 hr 490 ℃ | 750~960 | ＞10 | 48~60 |
Related Material Specifications of UNS.C17500 (Alloy 10) Beryllium Bronze Alloy:
Wires: ASTM B441
Rods/Bars/Tubes: ASTM B441, SAE J461, 463; RWMA Class 3
Strips: ASTM B534
Sheets: ASTM B534
Plates: ASTM B534, SAE J461, RWMA Class 3
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by
ASTM.
Typical Applications of UNS.C17500 (Alloy 10) Beryllium Bronze Alloy:
| • Bearings and bushes |
| • Plastic moulds |
| • Corrosion resistant components |
| • Current carrying springs |
| • Welding electrodes |
| • Electrical and electronic connectors |

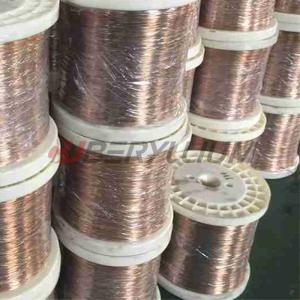

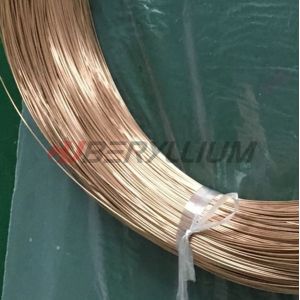

Product Photo:
Weldability
Soldering, brazing, gas shielded arc welding, coated metal arc
welding, spot welding, seam welding and butt welding are all
recommended
Hot & Cold Workability
Good hot working properties. Excellent cold working properties.
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This
reaction is generally carried out at temperatures between 260°C and
540°C depending on alloy and desired characteristics. This cycle
causes the dissolved beryllium to precipitate as a beryllium rich
(gamma) phase in the matrix and at the grain boundaries. It is the
formation of this precipitate which causes the large increase in
material strength. The level of mechanical properties attained is
determined by the temperature and time at temperature. It should be
recognized that beryllium copper has no room temperature aging
characteristics.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened
process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06)
XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous
Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the
amount is different.
