Beryllium Copper Pipe UNS. C17500 (Alloy 10) Used In The Industry
Applications
Product Description:
Name: Beryllium Copper Pipe
Grade: UNS. C17500 (Alloy 10)
End Product Form: Pipe, Tube
State: A(TB00), H(TD04), AT(TF00), HT(TH04)
Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163,
EN 12165, EN 12167
Application: Use in products for resistance welding application
Feature: with high conductivity
Package: in plywoode cases or wooden cases
Size: Custom Diameter & Sizes, Random Mill Lengths
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.
These fall into two categories: alloys selected for high strength
(Alloys 172,173,170) and alloys selected for high conductivity
(Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia
Market. Also Supply Master alloy : CuBeryllium-200;
CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global
factory.
CUBERYLLIUM ®-750 also named -C17500 (CDA 750) combine moderate yield strength, up to 960Mpa(140ksi), with
electrical and thermal conductivity from 45 to 60 % of pure copper.
Alloys 750 and 751 are available in wrought product forms and can
be supplied fully hardened. Hardened products are identified by the
temper designation AT or HT, and have good formability.
Chemical Composition of Beryllium Copper Pipe UNS. C17500 (Alloy
10):
| Element | Be | Co | Ni | Co+Ni | Co+Ni+Fe | Pb | Al | Si | Fe | Cu |
|---|
| Beryllium C17500 | 0.4-0.7 | 2.4-2.7 | - | - | - | - | 0.2 max. | 0.2 max. | 0.1 max. | Bal
|
Related material specifications of Beryllium Copper Pipe UNS. C17500 (Alloy 10):
Tubes/Pipes: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN
12163, EN 12165, EN 12167
European Standards: CuCo2Be, CuCoBe, Alloy 10, DIN 2.2185, CW104C
to EN
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by
ASTM.
Typical Physical Properties of Beryllium Copper Pipe UNS. C17500 (Alloy 10):
| Element | Density (g/cm3) | Elastic Modulus(MPA) | Thermal Expansion | Thermal Conductivity(w/(m.k) | Melting Temperature(C) |
|---|
| Beryllium C17500 | 8.83 | 138000 | 18 | 240 | 1010-1050 |
Typical Applications for Beryllium Copper Pipe UNS. C17500 (Alloy 10):
A: Electrical Industry: Switch Parts, Connectors, Spring
Connectors, Fuse Clips, Relay Parts;
B: Fasteners: Washers, Fasteners;
C: Industrial: Spring, Resistance Welding Equipment, Resistance and
Spot Welding Tips, Seam Welding Dies, Die-Casting Plunger Tips,
Tooling for Plastic Moulds.
Temper Designations of Beryllium Copper Pipe UNS. C17500 (Alloy 10)
(CUBERYLLIUM ®-750):
| Cuberyllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Tube/Pipe |
| Temper | Outside Diameter or Distance Between Parallel Surfaces (mm) | Tensile Strength
(Mpa) | Yield Strength 0.2% offset(Mpa) | Elongation Percent | HARDNESS
(Rockwell B Scale) | Electrical Conductiviry percent(IACS) |
| A | TB00 | All sizes | 240～380 | 70～210 | 20-35 | B20-50 | 20-30 |
| H | TD04 | up to 76 | 440~550 | 340~520 | 10-15 | B60-80 | 20-30 |
AT
| TF00 | All sizes | 680～890 | 550～690 | 10-25 | B92-100 | 45-60 |
| HT | TH04 | up to 76 | 750 ~ 960 | 650 ~ 860 | 5-25 | B95-102 | 48-60 |

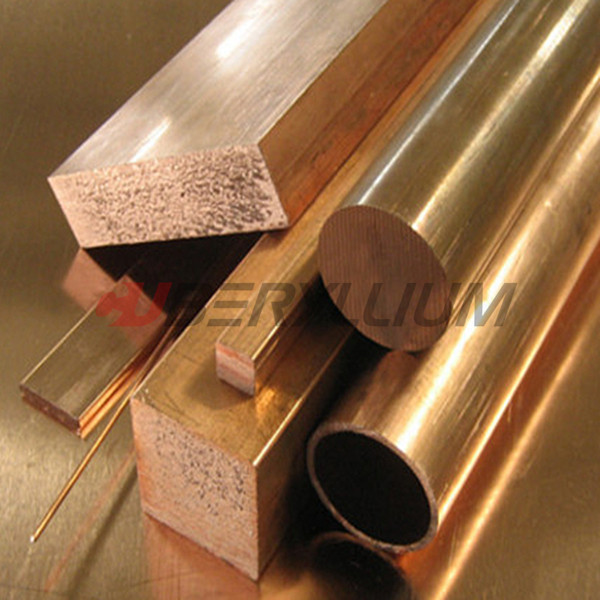

Product Photo:
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This
reaction is generally carried out at temperatures between 260°C and
540°C depending on alloy and desired characteristics. This cycle
causes the dissolved beryllium to precipitate as a beryllium rich
(gamma) phase in the matrix and at the grain boundaries. It is the
formation of this precipitate which causes the large increase in
material strength. The level of mechanical properties attained is
determined by the temperature and time at temperature. It should be
recognized that beryllium copper has no room temperature aging
characteristics.
FAQ:
Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous
Furnace.
3:Surface further polishing for top clients.
Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid
before the delivery.
Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the
amount is different.
