Qbe2 Beryllium Copper Strip 0.8mmx250mm Bright Surface With High
Strength and Good Quality
Product Description:
Name: Beryllium Copper Strip
Grade: Qbe2
Specification: 0.8mmx250mm
Tolerance: +/-0.015mm
State: Soft
Surface: Bright
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.
These fall into two categories: alloys selected for high strength
(Alloys 172,173,170) and alloys selected for high conductivity
(Alloys 751,750,741). And Gost standard
QBe2,QBe1.9Ti(БрБ2;БрБНТ1.9) for Russia Market. Also Supply Master
alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and
Cuberyllium-400 to global factory.
Chemical Composition:
| CUBERYLLIUM® Brand | Gost- Number | Beryllium | Al | Ni | Fe | Cu | Si |
| Cuberyllium-Qbe2 | Qbe2 | 1.80-2.10 | 0.15 max | 0.2~0.5 | 0.15 max | Rest. | 0.15 max |
Typical Physical Properties:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980
| Mechanical Properties | | | |
| Name | Temper | Thickness
(mm) | Tensile Strength | Hardness | Elongation (min) |
|
| MPa | HV | Percent |
| Qbe2 | Soft | <0.15 | >390 | <130 | >30% |
| 0.15~0.25 | 390~590 |
| >0.25 | 390~590 |
| Hard | <0.15 | >590 | >170 | >3% |
| 0.15~0.25 | 590~880 |
| >0.25 | 640~930 |
After Ageing
(Soft) | <0.15 | >1080 | >330 | >2% |
| 0.15~0.25 | 1080~1470 |
| >0.25 | 1130~1470 |
After Ageing
(Hard) | <0.15 | >1080 | >360 | >1.5% |
| 0.15~0.25 | 1130~1570 |
| >0.25 | 1170~1570 |
| Application of Qbe2 Beryllium Cpper Alloy |
|---|
| Electrical Industry | - Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay
parts, Connectors, Spring Connectors, Contact Bridges, Belleville
Washers, Navigational Instruments, Clips, EMI Finger Stock.
|
|---|
| Industrial | - Pumps, Springs, Electrochemical, Shafts, Non-Sparking Safety Tools,
Flexible Metal Hose, Housings for Instruments, Bearings, Bushings,
Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment,
Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon
Tubes, Wear Plates on Heavy Equipment, Bellows
|
|---|

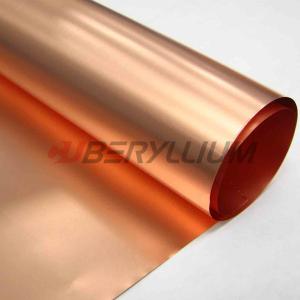

Product Photo:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened
process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06)
XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous
Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the
amount is different.
