Beryllium Copper CuBe2 in Wire Form Used in The Electrical Indsutry
Product Description:
Name: Beryllium copper wire
Grade: CuBe2
Specification: Diameter 1.4mm
Surface: Bright
State: A(TB00), 1/4H(TD01), 1/2H(TD02), 3/4H(TD03, H(TD04)
Features: High strength and elestivity
Application: For electrical industry
Chemical Composition of Beryllium Copper CuBe2 Alloy:
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of Beryllium Copper CuBe2 Alloy:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Mechanical and Electrical Properties of Beryllium Copper CuBe2
Wires:
| Alloy | Temper (*) | Heat Treatment | Tensile Strength Mpa | Elongation percent | Electrical Conductivity percent IACS |
CUBERYLLIUM
172 | A | / | 400～580 | 30-60 | 15-19 |
| (TB00) |
| 1/4 H | / | 570～795 | 3~25 | 15-19 |
| (TD01) |
| 1/2 H | / | 710～930 | 2~15 | 15-19 |
| (TD02) |
| 3/4 H | / | 840～1070 | 2~8 | 15-19 |
| (TD03) |
| H | / | 915～1140 | 1~6 | 15-19 |
| (TD04) |
CUBERYLLIUM
172 | AT | 3 hr 315℃ | 1050~1380 | 3 min | 22-28 |
| (TF00) |
| 1/4 HT | 2 hr 315℃ | 1150~1450 | 2 min | 22-28 |
| (TH01) |
| 1/2 HT | 1.5hr 315℃ | 1200~1480 | 2 min | 22-28 |
| (TH02) |
| 3/4 HT | 1.0 hr 315℃ | 1250~1585 | 2 min | 22-28 |
| (TH03) |
| HT | 1.0hr 315℃ | 1300~1585 | 1 min | 22-28 |
| (TH04) |
International Specification of Beryllium Copper CuBe2 Alloy:
| Product Type | Temper Type |
| Bar | ASTM B196 |
| Military Mil-C-21657 |
| Rod | ASTM B196 |
| Military Mil-C-21657 |
| Wire | ASTM B197, AMS4725, SAE J461,463, RWMA Class 4 |
| European Standards | CuBe2, Alloy 25, BrB2, DIN.2.1247, CW101C to EN |
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by
ASTM.

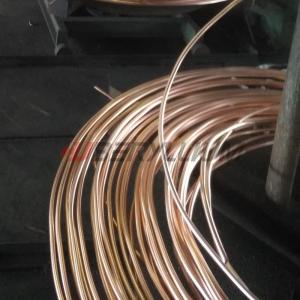

Product Photo:
Process of Copper Beryllium Wires:
Contact Us:
Contact Person: Yomi Xu(Sales Manager)
Email ID: sales@cuberyllium.com
Mobile/Wechat: +86-17376550856
FAQ:
Q1: Could you produce Beryllium Copper strip by Mill Hardened
process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06)
XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2: We are the only one who melting by Vacuum semi-Continuous
Furnace.
3: Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement
