Beryllium Copper Strips C1720R-1/2H Size 0.35mmt x 38mmw with Standard Tolerance

Product Normal Description:

Introduction of Beryllium Copper Alloy C1720:

Standards: ASTM B196, AMS 4533, SAE J461, RWMA CLASS IV, CuBe2 2.1247

C17200 is also known as Alloy 25 and is the most commonly utilized beryllium copper alloy and is notable for exhibiting the highest strength and hardness compared to commercial copper alloys. Its strength and hardness is similar to that of steel. C17200 copper's ultimate tensile and Rockwell hardness properties in a peak aged condition are in the 200 ksi range and RC 45 respectively (electrical conductivity 22% IACS minimum).

Chemical Composition of Beryllium Copper Alloy C1720:

Tipical Application of Beryllium Copper Alloy C1720:

Standard Tolerance of Beryllium Copper Alloy C1720:

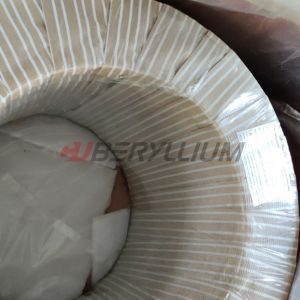

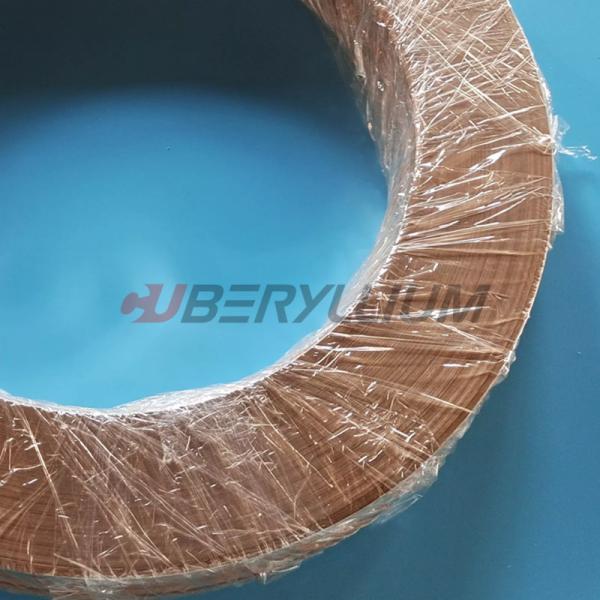

Product Photo of Beryllium Copper Alloy C1720R:

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

Cuberyllium Metal Technology Co.,Ltd., is a national-level high-tech company. It is a production-oriented enterprise mainly engaged in the production of high-performance beryllium copper materials.

CUBERYLLIUM^® established in 2002 years and located in Zhejiang Prov., China. It is a member of “CUBERYLLIUM^®” Group which was founded in 1998 with a long experience of Beryllium Copper Alloy.

At present, “CUBERYLLIUM^®” Group has developed into three production bases in Zhejiang, Jiangsu and Shanxi, covering more than 30000 square meters with more than 120 employees.

"CUBERYLLIUM^®" Group is a professional manufacturer which based on production and development of beryllium copper alloy, with well equipped testing facilities and strong technical force, good quality and reasonable price.

CUBERYLLIUM^®'s beryllium copper has high conductivity, high strength, wear resistance, fatigue resistance, corrosion resistance and other characteristics, widely used in aerospace, communications, welding, chemical petroleum and medical fields.
