ROHS EN CuBePb Beryllium Bronze Copper Rod For Parts with medium
strength and high conductivity
Product Specification:
| Name | ROHS EN CuBePb Beryllium Bronze Copper Rod For Parts with medium
strength and high conductivity |
| Standard | ASTM B194,B196 |
| AMS 4650,4651,4533,4534 |
| MILITARY MIL-C-21657 |
| SAE J463,J461 |
| Diameter | 2mm-8mm |
| Length | 1000mm-3000mm or as required |
| Export to | Indonesia,Ukraine,USA,Brazil,Thailand,VietNam,Korea,lndia, Egypt.Dubai,Kuwait,Malaysia,Russia,Australia,etc |
| Package | Packed with waterproof paper or woven bag, then put it into wooden
box or pallets. |
| MOQ | 30Kg |
| Application | |
| Copper bar can be made as all kindsof deeping drawing and bending
str-ess components,Such as pin, rivetswashers, nuts, ducts, air
gauge, screenmesh, radiator parts, etc. | | Parts with medium strength and high conductivity, such as fuse
links, springs, connectors, resistance spot welding heads, seam
welding rollers, die casting machines, plastic molding molds, etc | | Electrical Industry: Switch Parts, Relay parts, Electrical
Connectors, Fuse Clips, Contact Bridges, Electrical Motor
Components, Navigational Instruments, Electrical Switch and Relay
Blades. |
|
Advantages:
1. The surface of the product is smooth and flat without rust,
scratch, delamination, pinhole and bubble.
2. We have professional production equipment and use vacuum Semi-
Continuous Furnace for melting, which can obtain the Cast ingot
without gas,smaller segregation, Grain Refinement.
3. Various Types of Specifications. Multiple specifications
optional, support customized.
Size Information:
| Shape | Condition | Size |
| Straight Round Rod/ Wires | hard/half hard | Φ2-15mm |
| Straight Round Rod | hard/half hard | Φ3-90mm |
| Flat Bars/ Plates/ Sheets | hard/half hard | a2-8*b2-150mm |
Physical Property:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980
Service:
1) Timely Delivery: All inventory products can be delivered in
time.
2) Customer service replied in a timely manner, and problems were
solved in time.

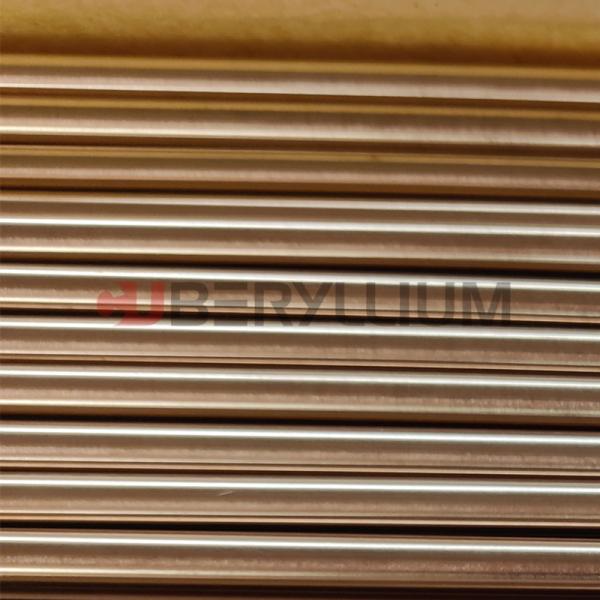

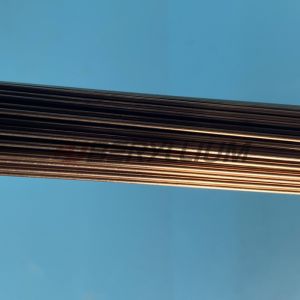

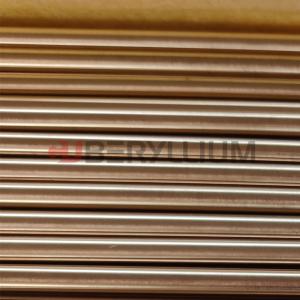

Product Photos:
Alloy M25 can be supplied in the form of bar or wire based on
different design needs. Also there are different supply states for
customers to choose according to different needs. C17300 also has
good welding performance, wear resistance and adhesion resistance.
It can be forged into parts of various shapes. Beryllium copper
c17300 has better strength and wear resistance than chromium
zirconium copper alloy.
FAQ:
1. How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax,
Whatsapp or Mobile telephone.
Mobile/Wechat/Whatsapp: +86-17376550856
Email:info@cuberyllium.com
2. What is the lead time?
Usually 7 days after payment has been confirmed.
3. What is your payment terms?
T/T,L/C,Western Union,MoneyGram,Paypal.
4. What’s your advantage?
1) Professional production equipment.
2)Smooth surface.
3) Complete specification.
