Product Normal Description:
| CuBe2 (CW101C, C17200) ROUND BAR Dia. 10mm 12mm 14mm 16mm 25mm 30mm
With 3m Length |
| Product Shape | Round Bar |
| Product Grade | CuBe2 (CW101C, C17200) |
| Product Standard | ASTM B196 |
| Round Bar Dia. | 10mm 12mm 14mm 16mm 25mm 30mm |
| Round Bar Length | 3m |
| Product State | (TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04) |
| Product Brand | CUBERYLLIUM® |
International Specification of CuBe2 (CW101C, C17200) Copper Alloy:
Rods/Bars/Tubes: ASTM B196,251,463; SAE J461,463; AMS
4533,4534,4535; AMS 4650,4651; RWMA Class 4
European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C
to EN
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by
ASTM.
CuBe2 (CW101C, C17200) Copper Alloy Chemical Composition:
| Cu/ Copper | Be/ Beryllium | Ni + Co/ Nickel + Cobalt | Ni + Co +Fe/ Nickel +Cobalt + Iron |
| % rem | % 1.8-2.0 | 0.2% Min. | 0.6% Max. |
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of CuBe2 (CW101C, C17200) Copper Alloy:
| Mechanical Properties | | | |
| Hardness | Brinell | 255-297 | RC 25-32 |
| Tensile Strength | KSI | 130 | |
| Yield Strength | KSI | 110 | |
| Elongation | % | 7 | |
| Elastic Modules | KSI | 18500 | |
Mechanical and Electrical Properties of ASTM B-196(C17200) Beryllium Copper Rod:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi | Elogation Percent (Min) | Electrical Conductivity Percent IACS | Hardness Rockwell B or C Scale |
|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
| 1/2H(TB04) | 5~40 | / | 550~700 | 10 | 15~19 | ＞B78 |
H(TD04)
| 5~10 | / | 660~900 | 5 | 15~19 |
＞B88
|
| ＞10~25 | / | 620~860 | 5 | 15~19 |
| ＞25 | / | 590~830 | 5 | 15~19 |
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 |
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44
|
About Cuberyllium
Cuberyllium is an industry-leading manufacturer of beryllium copper
alloys. Our inventory is manufactured to ASTM specifications. Our
beryllium copper alloys could be custom manufactured to your
specific size and shape need, whether is be strips, rods, bars,
sheets, plates, wires or tubes. Our production lines have been
developed to produce exceptional, consistent quality in every
copper alloy we produce.

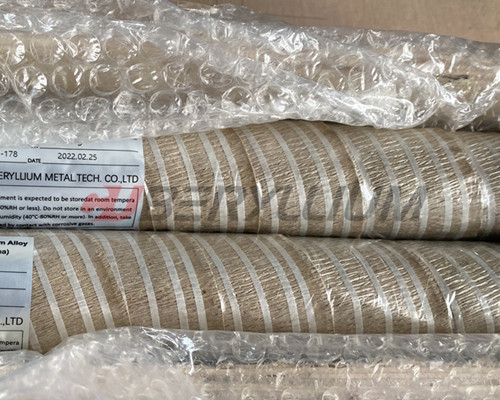

Product Packing:
Specific Marking and Packaging:
Each item or part has a unique identifier and is specifically
packaged to meet the customer’s needs. We also could adapt to
customers’ request.
