Beryllium Copper Sheets In Alloy 25 UNS C17200 With Thickness 2mm
| Usage/Application | Industrial |
| Alloy | With Alloy |
| Pack Type | Sheet, Plate, Square Plate |
| Grade | C17200 |
| Storage Temperature | 0-25 degree C |
| Plate Size | 2mm thickness |
| Cu Content | Rem. |
| Customisation | Customised |
Copper Beryllium is the highest strength copper alloy and is
specified when the mechanical strength is the limiting design
feature for a copper alloy. It is a heat treatable copper alloy
having the unusual combination of very high hardness and strength
and lower electrical conductivity than AWS J1.3/ RWMA Class 3
materials.
Beryllium copper plates can be made available by us in both hot
rolled/cold rolled construction finish choices. Our Beryllium
Copper Plate are manufactured using excellent quality material at
our reliable vendor’s end by the use of latest technology. Some of
its features include: High performance based.
Introduction Beryllium Copper Alloy 25 UNS C17200:
- Other designations of C17200 alloy: AWS J1.3, ASTM B196, AMS 4533,
SAE J461, CuBe2.1247, Alloy 25, RWMA Class 4
- Chemical Composition of C17200 alloy: Be: 1.8-2.0, Ni+Co: 0.02
Min., Ni+Co+Fe: 0.06 Max., Cu: Balance
- End product form of C17200 alloy: Sheets, Plates, Strips, Rods,
Bars, Tubes, Wires and other processing products.
Application of Beryllium Copper Alloy 25 UNS C17200:
Landing Gear Bushings
Directional Drilling Equipment
Bearings
Bushings
Flex Shafts
Pressure Housings
Physical Properties of Beryllium Copper Alloy 25 UNS C17200:
| | | Yield Strength | | 108 cycles | Hardness | |
| ksi |
| Temper | Heat Treatment | Tensile Strength ksi | 0.2% offset ksi | Elongation % | Fatigue Strength | Rockwell B or C | Electrical Conductivity % IACS |
| A Dead Soft (TB00) | -- | 60-76 | 28-36 | 35-65 | 30-35 | B45-78 | 15-19 |
| A Planished (TB00) | -- | 60-78 | 30-55 | 35-60 | 30-35 | B45-78 | 15-19 |
| 1/4 H (TD01) | -- | 75-88 | 60-80 | 20-45 | 31-36 | B68-90 | 15-19 |
| 1/2 H(TD02) | -- | 85-100 | 75-95 | 12-30 | 32-38 | B88-96 | 15-19 |
| H (TD04) | -- | 100-120 | 90-115 | 2-18 | 35-39 | B96-102 | 15-19 |
| AT (TF00) | 3 hr. at 600 °F | 165-195 | 140-175 | 3-15 | 40-45 | C36-42 | 22-28 |

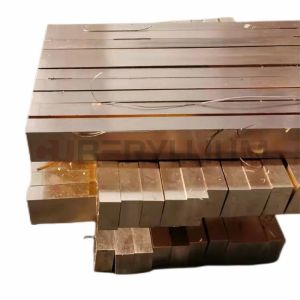

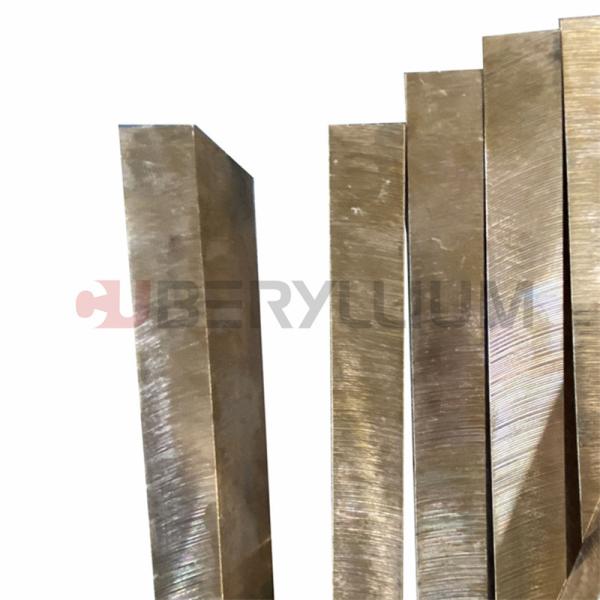

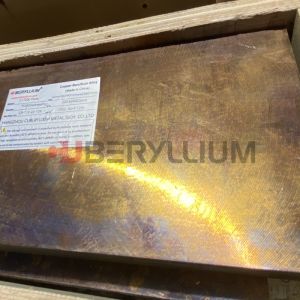

Product Photos:
More Products Cuberyllium could provide:
More range of copper and copper alloys, in full series of shapes:
Sheet, Bar, Tubes, Strips and Wire list as below:
C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
Our Advantages:
Superior quality
Proactive customer service
Innovative solutions
Extremely fast turn around
Technical Support
Together we can achieve substantial amount of productivity for our
applications, we can also develop and arrange mechanical properties
according to specific requirements.
